Trek Speed Concept SLR 7 AXS
Details

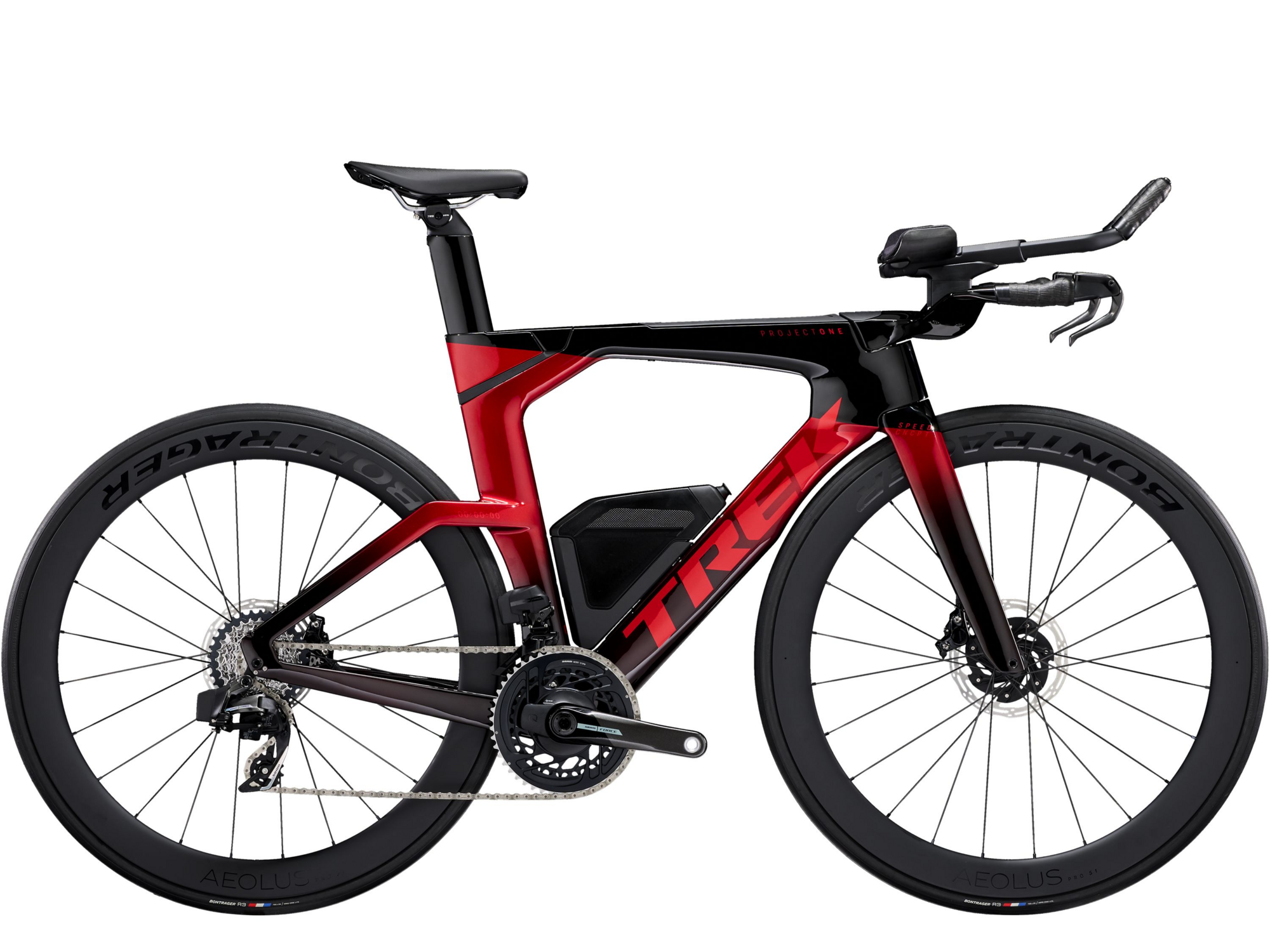

Speed Concept SLR 7 AXS is an aerodynamic carbon triathlon bike engineered for incredible speed and seamless integration. Every bit of this bike – from the light aero frame to ride-smoothing IsoSpeed, cutting-edge fuel and hydration systems, and a SRAM Force AXS D2 wireless electronic drivetrain – has been painstakingly designed to help you beat your PR again, and again, and again.
ITS RIGHT FOR YOU IF…
You leave it all on the course and want a tri bike that does the same. You want blazing fast aero speed, a SRAM Force wireless electronic drivetrain for precise shifts, and loads of integrated accessories that make hydrating and re-fueling easy.
THE TECH YOU GET
Ultra-lightweight 800 Series OCLV Carbon frame, drag-reducing Kammtail Virtual Foil (KVF) tube shaping, Speed Concept full foil carbon fork, road-smoothing IsoSpeed, integrated fuel, hydration, and flat kit storage, SRAM Force AXS D2 wireless electronic 12-speed drivetrain with SRAM AXS Clics shifters, a Force AXS power meter, fully integrated handlebar and stem, Bontrager Hilo Comp triathlon-specific saddle for an aggressive aero position, disc brakes for reliable stopping power, and Bontrager Aeolus Pro 51 OCLV Carbon wheels.
THE FINAL WORD
Speed Concept is as fast as it is smart. Its simple, thoughtful design and integrated features ensure a less stressful race day, help you achieve your fastest bike splits ever, and set you up for a successful run. SLR 7 AXS also comes with a power meter for dialed training rides.
WHY YOU'LL LOVE IT
- Smart integrated fuel and hydration storage makes it simple and stress-free to stay strong without leaving your aero position
- Easy build, easy travel: fast assembly makes it easier to travel to races
- The SRAM Force AXS D2 drivetrain is smart, smooth, and completely wireless
- Comes with a SRAM Force AXS power meter for more effective training rides from the start
- Make it yours: it's fully customizable through Project One. Choose your model. Choose your paint. Choose your parts.
| Frame size letter | S | M | L | XL |
|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c |
| A — Seat tube | 49.9 | 52.5 | 54.9 | 57.4 |
| B — Seat tube angle | 78.0° | 78.0° | 78.0° | 78.0° |
| C — Head tube length | 6.5 | 9 | 11.5 | 14 |
| D — Head angle | 72.2° | 72.5° | 72.5° | 72.5° |
| E — Effective top tube | 49.5 | 51.8 | 54.1 | 56.5 |
| G — Bottom bracket drop | 8 | 8 | 8 | 8 |
| H — Chainstay length | 41 | 41 | 41 | 41 |
| I — Offset | 4.5 | 4.5 | 4.5 | 4.5 |
| J — Trail | 6.1 | 6 | 6 | 6 |
| K — Wheelbase | 96.7 | 99.5 | 102 | 104.7 |
| L — Standover | 76 | 78.5 | 80.8 | 83.1 |
| M — Frame reach | 39 | 41.6 | 42.6 | 44.5 |
| N — Frame stack | 49.2 | 51.7 | 54.1 | 56.5 |
| Saddle rail height min (w/short mast) | 55.9 | 58 | 60.4 | 62.8 |
| Saddle rail height max (w/short mast) | 66.6 | 69.2 | 71.5 | 74 |
| Saddle rail height min (w/tall mast) | 64.9 | 67 | 69.4 | 71.8 |
| Saddle rail height max (w/tall mast) | 75.6 | 78.2 | 80.5 | 83 |
| Size | Rider Height | Inseam |
|---|---|---|
| S | 154 - 167 cm 5'1" - 5'6" |
72 - 80 cm 28" - 31" |
| M | 167 - 175 cm 5'6" - 5'9" |
77 - 83 cm 30" - 33" |
| L | 175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL | 186 - 198 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | SC full foil carbon, integrated brake & stem |
| Chain | SRAM Force, 12 speed |
| Frame | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage |
| Tires | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm |
| Saddle | Bontrager Hilo Comp, hollow chromoly rails |
| Crankset | SRAM Force AXS D2, power meter, 48/35, DUB, 172.5mm length |
| Seatpost | Speed Concept SLR, 11.5mm or -20mm offset, tall length |
| Shifters | SRAM eTap AXS Wireless Blips, basebar-mounted // SRAM eTap AXS BlipBox // SRAM eTap Clics, extension-mounted |
| Handlebars | Speed Concept mid-rise bar/stem |
| Brake Levers | SRAM S-900 Aero |
| Rear Derailleur | SRAM Force AXS D2, 36T max cog |
| Cassette/Freewheel | SRAM Force XG-1270, 10-33, 12 speed |
| Rotors | SRAM CenterLine X, centerlock, round edge, 160mm |
| Wheels | Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle / Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Front Derailleur | SRAM Force AXS D2, braze-on |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Carbon Red Smoke / Small / 700c | 197216081579 | 5326921 |
| Prismatic Pearl/Trek Black / Small / 700c | 197216081531 | 5326917 |
| Carbon Red Smoke / Large / 700c | 197216081593 | 5326923 |
| Carbon Red Smoke / X-Large / 700c | 197216081609 | 5326924 |
| Prismatic Pearl/Trek Black / Medium / 700c | 197216081548 | 5326918 |
| Carbon Red Smoke / Medium / 700c | 197216081586 | 5326922 |
| Prismatic Pearl/Trek Black / Large / 700c | 197216081555 | 5326919 |
| Prismatic Pearl/Trek Black / X-Large / 700c | 197216081562 | 5326920 |
