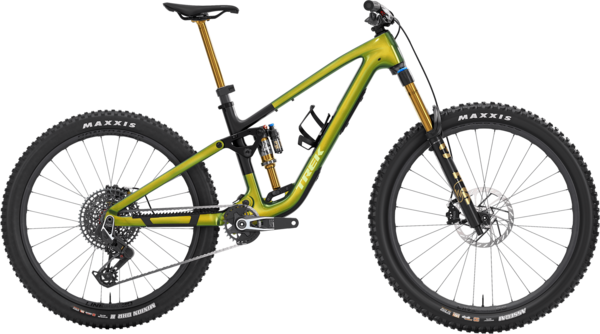

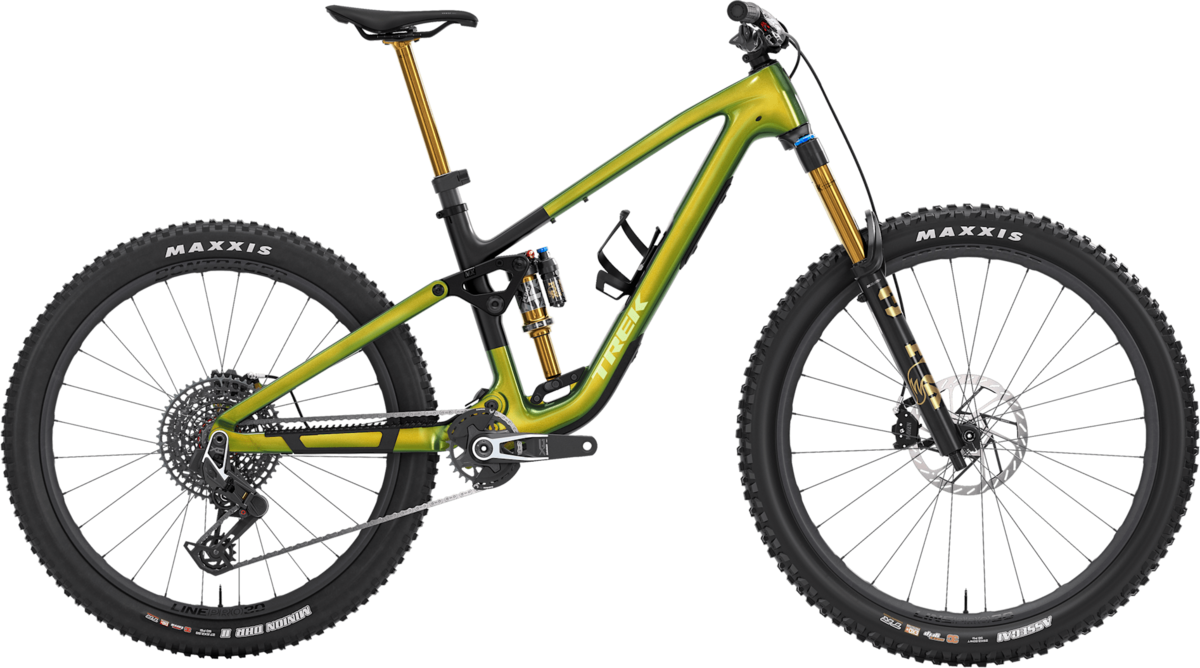

Trek Fuel MX 9.9 X0 AXS Gen 7

Trek Fuel MX 9.9 X0 AXS Gen 7
  • Color: Gloss Chameleon Green /Matte Black
  • Color: Purple Phaze/Amethyst Marble
  • Color: Gloss Dark Carmine/Matte Trek Black
$8,599.99
Color:
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

Fuel MX 9.9 X0 AXS is our top-tier chaos-craving carbon trail bike, built for chasing the wilder things in life. It starts off with an OCLV Mountain Carbon frame, speced with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting wild on the trail. SRAM's wireless X0 AXS transmission delivers crystal-clear shifting, even under load, while 4-piston SRAM Maven Silver brakes give you the modulation and power you need. It's topped off with a Fox Transfer NEO dropper post and carbon Bontrager Line Pro 30 wheels.

Frame SizeSmallMediumLargeX-LargeXX-Large
Wheel size (in) 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
Seat tube (cm / in) 37.0 / 14.57 40.0 / 15.75 42.0 / 16.54 45.5 / 17.91 47.5 / 18.70
Seat tube angle (degrees) 72.3° 72.3° 72.3° 72.3° 72.3°
Effective seat tube angle (degrees) 78.3° 77.5° 77.0° 76.6° 76.1°
Head tube length (cm / in) 9.5 / 3.74 11.0 / 4.33 12.5 / 4.92 14.0 / 5.51 15.5 / 6.10
Head angle (degrees) 64.2° 64.2° 64.2° 64.2° 64.2°
Effective top tube (cm / in) 54.9 / 21.61 58.4 / 22.99 61.8 / 24.33 65.2 / 25.67 68.2 / 26.85
Bottom bracket height (cm / in) 34.3 / 13.50 34.3 / 13.50 34.3 / 13.50 34.3 / 13.50 34.3 / 13.50
Bottom bracket drop (cm / in) 3.1 / 1.22 3.1 / 1.22 3.1 / 1.22 3.1 / 1.22 3.1 / 1.22
Chainstay length (cm / in) 43.4 / 17.09 43.4 / 17.09 43.9 / 17.28 44.4 / 17.48 44.9 / 17.68
Offset (cm / in) 4.4 / 1.73 4.4 / 1.73 4.4 / 1.73 4.4 / 1.73 4.4 / 1.73
Trail (cm / in) 13.2 / 5.20 13.2 / 5.20 13.2 / 5.20 13.2 / 5.20 13.2 / 5.20
Wheelbase (cm / in) 119.1 / 46.89 122.8 / 48.35 126.4 / 49.76 130.1 / 51.22 133.2 / 52.44
Standover (cm / in) 74.5 / 29.33 74.7 / 29.41 75.4 / 29.69 76.0 / 29.92 76.9 / 30.28
Frame reach (cm / in) 42.6 / 16.77 45.6 / 17.95 48.2 / 18.98 50.7 / 19.96 52.7 / 20.75
Frame stack (cm / in) 61.3 / 24.13 62.7 / 24.69 64.1 / 25.24 65.4 / 25.75 66.8 / 26.30
Frame SizeRider Height (cm / ft-in)Inseam (cm / in)
Small 155 - 165 cm / 5'1" - 5'5" 74 - 78 cm / 29" - 31"
Medium 165 - 177 cm / 5'5" - 5'10" 79 - 83 cm / 31" - 33"
Large 177 - 188 cm / 5'10" - 6'2" 84 - 89 cm / 33" - 35"
X-Large 188 - 195 cm / 6'2" - 6'5" 89 - 91 cm / 35" - 36"
XX-Large 195 - 203 cm / 6'5" - 6'8" 91 - 97 cm / 36" - 38"

Specs

Frame OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel
Rear Shock Fox Factory Float X, 205mm x 60mm
Wheels Front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
Tires Front: Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' Rear: Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
Bottom Bracket SRAM DUB MTB Wide, 73mm, BSA threaded
Crankset SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length
Shifters SRAM AXS pod
Rear Derailleur SRAM X0 Eagle AXS, T-Type
Cassette/Freewheel SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Chain SRAM X0 Eagle, T-Type, 12 speed
Brakes SRAM Maven Silver 4-piston hydraulic disc
Rotors Front: SRAM HS2 180mm Rear: SRAM HS2 200mm
Handlebars Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
Tape/Grips Trek Line Elite, lock-on
Stem Race Face Turbine R, 35mm, 0 degree, 40mm length
Saddle Verse Short Pro, carbon rails, 145mm width

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Chameleon Green /Matte Black / Small / 29-inch front / 27.5-inch rear 197216207573 5334792
Gloss Chameleon Green /Matte Black / Medium / 29-inch front / 27.5-inch rear 197216207580 5334793
Gloss Chameleon Green /Matte Black / Large / 29-inch front / 27.5-inch rear 197216207597 5334794
Gloss Chameleon Green /Matte Black / X-Large / 29-inch front / 27.5-inch rear 197216207603 5334795
Gloss Chameleon Green /Matte Black / XX-Large / 29-inch front / 27.5-inch rear 197216207610 5334796
Purple Phaze/Amethyst Marble / Small / 29-inch front / 27.5-inch rear 197216207627 5334797
Purple Phaze/Amethyst Marble / Medium / 29-inch front / 27.5-inch rear 197216207634 5334798
Purple Phaze/Amethyst Marble / Large / 29-inch front / 27.5-inch rear 197216207641 5334799
Purple Phaze/Amethyst Marble / X-Large / 29-inch front / 27.5-inch rear 197216207658 5334800
Purple Phaze/Amethyst Marble / XX-Large / 29-inch front / 27.5-inch rear 197216207665 5334801
Gloss Dark Carmine/Matte Trek Black / Small / 29-inch front / 27.5-inch rear 197216207528 5334787
Gloss Dark Carmine/Matte Trek Black / Medium / 29-inch front / 27.5-inch rear 197216207535 5334788
Gloss Dark Carmine/Matte Trek Black / Large / 29-inch front / 27.5-inch rear 197216207542 5334789
Gloss Dark Carmine/Matte Trek Black / X-Large / 29-inch front / 27.5-inch rear 197216207559 5334790
Gloss Dark Carmine/Matte Trek Black / XX-Large / 29-inch front / 27.5-inch rear 197216207566 5334791
