Details

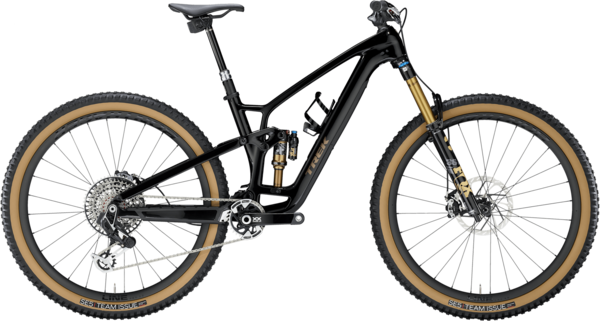

Fuel EX 9.9 XX AXS is a performance-first trail bike built for riders who have an appreciation for the finest things in life. It combines a cream of the crop carbon frame with top-tier components, from the carbon fiber wheels all the way up to the 150mm Kashima-coated FOX Factory fork, and featherweight, fully wireless SRAM XX transmission. It's a bike that rules the mountain and doesn't hesitate to lay claim to its domain, ripping up rock gardens, blasting berms, and rocketing back to the top to conquer it all once again.
IT'S RIGHT FOR YOU IF…
You have refined taste in mountain bikes, and don't like to settle. You want a bike built to tackle the whole mountain and rule it all with the finest technology available, from its light and stiff carbon frame and wheels that track through the hairiest lines, to the FOX Factory fork and SRAM's fully wireless top-tier XX transmission.
THE TECH YOU GET
An OCLV Mountain Carbon frame with lightweight carbon wheels and SRAM's top-tier XX AXS direct-mount, wireless electronic transmission. Silky smooth travel from a 150mm FOX Factory 36 Fork with Float EVOL air spring and GRIP2 damper, 140mm of FOX Factory Float X rear suspension, and a RockShox Reverb AXS dropper post, all topped off with adjustable geometry for fine-tuning your ride to you and internal frame storage that lets you keep your setup tidy without leaving behind trail essentials.
THE FINAL WORD
Fuel EX 9.9 is a bike built to satisfy those with the finest taste. It pairs together an all- mountain trail capable carbon frame with the finest components you'll find on a modern mountain bike, from its carbon hoops to featherweight wireless SRAM XX AXS shifting. It's all wrapped up with adjustable geometry, so you can fine tune your ride to always feel how you want it.
WHY YOU'LL LOVE IT
- Fuel EX Gen 6 gives you 140/150mm of travel with extra adjustability features and more stable handling, plus a more robust frame with internal storage
- We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5? wheels, S frames get to choose between 27.5? or 29? , and sizes M and up get 29? wheels
- The new SRAM T-Type transmission delivers next level performance with precise shifts under load and unmatched durability with proven wireless technology.
- In-frame storage makes it easy to bring along all of your essentials, while keeping your setup streamlined and sleek
- With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
Frame size | X-Small | Small | Medium | Medium/Large | Large | X-Large |
---|---|---|---|---|---|---|
Geometry position | High / Low | High / Low | High / Low | High / Low | High / Low | High / Low |
Wheel size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
Seat tube (cm) | 36 | 38 | 41 | 42 | 43.5 | 47 |
Seat tube angle | 71.2° / 70.8° | 71.1° / 70.8° | 71.4° / 70.8° | 71.4° / 70.8° | 71.4° / 70.8° | 71.3° / 70.8° |
Effective seat tube angle | 78.9° / 78.6° | 78.5° / 78.2° | 78.8° / 78.2° | 78.0° / 77.5° | 77.7° / 77.2° | 77.1° / 76.6° |
Head tube length (cm) | 9.5 | 9.5 | 10 | 10 | 10.5 | 12 |
Head angle | 64.9° / 64.5° | 64.8° / 64.5° | 65.1° / 64.5° | 65.1° / 64.5° | 65.1° / 64.5° | 65.0° / 64.5° |
Effective top tube (cm) | 51.6 | 55 / 55.1 | 58.3 / 58.4 | 60.6 / 60.7 | 62.6 / 62.7 | 66 / 66.2 |
Bottom bracket height (cm) | 33.7 / 33.2 | 33.7 / 33.2 | 34.3 / 33.5 | 34.3 / 33.5 | 34.3 / 33.5 | 34.3 / 33.5 |
Bottom bracket drop (cm) | 2.1 / 2.5 | 2.1 / 2.5 | 3.1 / 3.8 | 3.1 / 3.8 | 3.1 / 3.8 | 3 / 3.8 |
Chainstay length (cm) | 43.4 / 43.5 | 43.4 / 43.5 | 43.3 / 43.5 | 43.8 / 44 | 43.8 / 44 | 44.3 / 44.5 |
Offset (cm) | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
Trail (cm) | 11.9 / 12.2 | 11.9 / 12.2 | 12.5 / 12.9 | 12.5 / 12.9 | 12.5 / 12.9 | 12.5 / 12.9 |
Wheelbase (cm) | 114.4 / 114.5 | 117.4 / 117.5 | 121.2 / 121.3 | 123.2 / 123.3 | 124.9 / 125 | 128.6 / 128.7 |
Standover (cm) | 71.9 / 71.6 | 72.8 / 72.4 | 74.4 / 73.7 | 75.1 / 74.5 | 75.4 / 74.8 | 76.7 / 76 |
Frame reach (cm) | 40.4 / 40 | 43.3 / 43 | 45.6 / 45 | 47.6 / 47 | 49.1 / 48.5 | 52.1 / 51.5 |
Frame stack (cm) | 57.2 / 57.4 | 57.2 / 57.4 | 61.2 / 61.7 | 61.2 / 61.7 | 61.7 / 62.1 | 63 / 63.5 |
Size | Rider Height (cm) | Rider Height (in) |
---|---|---|
X-Small | 145 - 155 cm | 4'9" - 5'1" |
Small | 155 - 165 cm | 5'1" - 5'5" |
Medium | 165 - 176 cm | 5'5" - 5'9" |
Medium/Large | 173 - 180 cm | 5'8" - 5'11" |
Large | 177 - 188 cm | 5'10" - 6'2" |
X-Large | 188 - 195 cm | 6'2" - 6'5" |
XX-Large | 195 - 203 cm | 6'5" - 6'8" |
Specs
Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel |
---|---|
Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 180mm direct mount brake tab, 140-150mm travel |
Rear Shock | Fox Factory Float X, 2-position damper, 185mm x 55mm |
Wheels |
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5-29'' Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5'-29' |
Tires |
XS-S: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 27.5x2.50'' M - XL: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50'' |
Brakes | SRAM Maven Ultimate 4-piston hydraulic disc |
Crankset | SRAM XX Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length |
Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
Cassette/Freewheel | SRAM Eagle XS-1297, T-Type, 10-52, 12 speed |
Rear Derailleur | SRAM XX Eagle AXS, T-Type |
Rotors |
SRAM HS2, 6-bolt, 180mm SRAM 6-bolt, 200mm |
Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
Handlebars | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
Chain | SRAM XX Eagle, T-Type, 12 speed |
Tape/Grips | Bontrager XR Trail Elite, nylon lock-on |
Stem | Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length |
Seatpost | RockShox Reverb AXS, 100mm travel, wireless, 34.9mm |
Saddle | Verse Short Pro, carbon rails, 145mm width |
Pedals | Sold Separately |
Accessories & Extras | Bontrager BITS integrated multi-tool |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Deep Smoke / X-Small / 27.5-inch | 197216116974 | 5330191 |
Deep Smoke / Small / 27.5-inch | 197216116981 | 5330192 |
Deep Smoke / Medium / 29-inch | 197216116998 | 5330193 |
Deep Smoke / Medium/Large / 29-inch | 197216117001 | 5330194 |
Deep Smoke / Large / 29-inch | 197216117018 | 5330195 |
Deep Smoke / X-Large / 29-inch | 197216117025 | 5330196 |
Deep Smoke/Purple Flip / X-Small / 27.5-inch | 197216116615 | 5323905 |
Deep Smoke/Purple Flip / Small / 27.5-inch | 197216116622 | 5323906 |
Deep Smoke/Purple Flip / Medium / 29-inch | 197216116639 | 5323907 |
Deep Smoke/Purple Flip / Medium/Large / 29-inch | 197216116646 | 5323908 |
Deep Smoke/Purple Flip / Large / 29-inch | 197216116653 | 5323909 |
Deep Smoke/Purple Flip / X-Large / 29-inch | 197216116660 | 5323910 |
Lava / X-Small / 27.5-inch | 197216117032 | 5330197 |
Lava / Small / 27.5-inch | 197216117049 | 5330198 |
Lava / Medium / 29-inch | 197216117056 | 5330199 |
Lava / Medium/Large / 29-inch | 197216117063 | 5330200 |
Lava / Large / 29-inch | 197216117070 | 5330201 |
Lava / X-Large / 29-inch | 197216117087 | 5330202 |
Lavender Haze / X-Small / 27.5-inch | 197216116790 | 5330108 |
Lavender Haze / Small / 27.5-inch | 197216116806 | 5330109 |
Lavender Haze / Medium / 29-inch | 197216116813 | 5330110 |
Lavender Haze / Medium/Large / 29-inch | 197216116820 | 5330111 |
Lavender Haze / Large / 29-inch | 197216116837 | 5330112 |
Lavender Haze / X-Large / 29-inch | 197216116844 | 5330113 |
