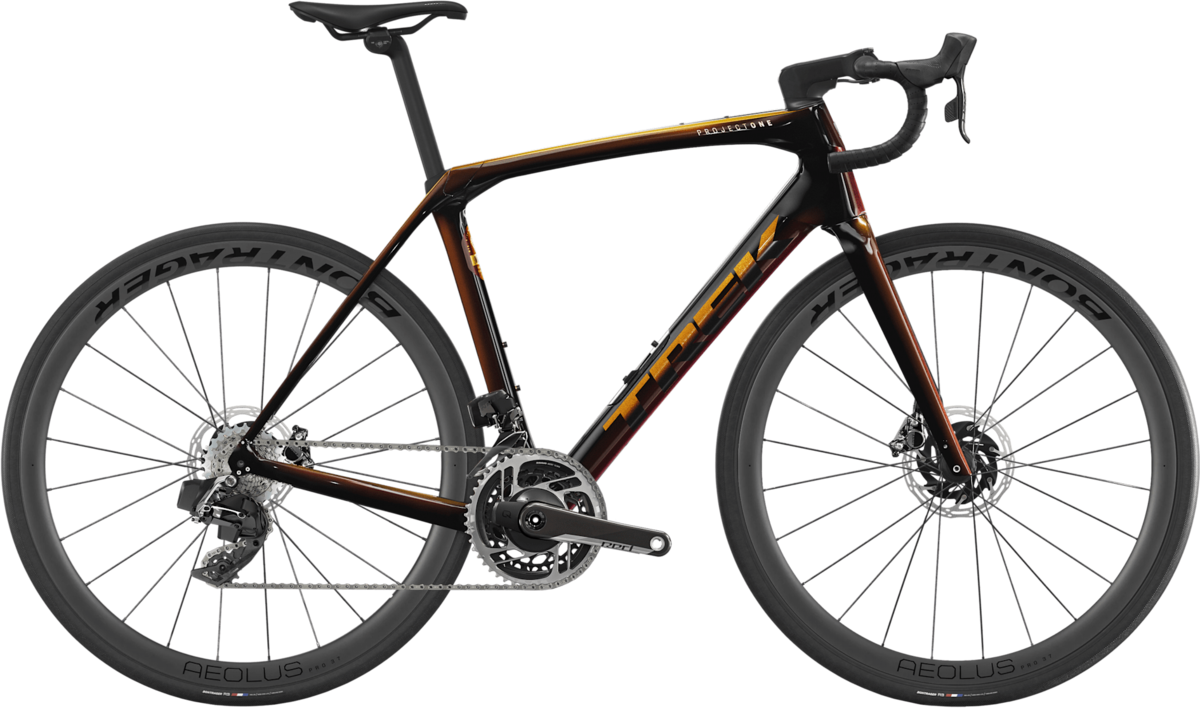

Trek Domane SLR 8 AXS
Details
Domane SLR 8 AXS is an ultralight carbon endurance road bike decked out with high-end parts made for covering big miles at top speed It's crafted from 800 Series OCLV Carbon with rear IsoSpeed, a wireless 2x12 previous generation SRAM RED AXS electronic drivetrain for precision shifting, and OCLV Carbon wheels. Internal storage makes it easy to stash ride essentials, and versatile 38mm tire clearance keeps you floating on rough roads and light gravel.
It's right for you if...
You want the perfect balance of performance for the long haul, comfort when the road turns to gravel, and race-worthy spec. You want a seriously advanced endurance road bike frame that comes with the added benefit of a wireless electronic SRAM RED AXS previous generation drivetrain for fast, reliable shifting in any condition.
The tech you get
An 800 Series OCLV Carbon frame and fork with rear IsoSpeed, internal storage, and top tube mounts. A previous generation wireless SRAM 2x12 RED AXS electronic drivetrain, power meter cranks for monitoring performance metrics, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels, and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.
The final word
Domane SLR 8 AXS delivers our highest-end Domane carbon frame, plus the precision shifting of a wireless previous generation SRAM RED AXS drivetrain. You're getting tech that provides a real advantage in comfort, reliability, and speed during all-day adventures, competitive group rides, or long races.
Why you'll love it
- Domane SLR Gen 4’s rear IsoSpeed, integrated cable routing, aero Kammtail tube shapes, and our high performance 800 Series OCLV Carbon come together for an ultra-lightweight, fast, and road-smoothing ride
- The previous generation SRAM RED AXS shifting is smooth, lighting-quick, and fully programmable, so you can tune your drivetrain to work exactly how you want it
- Road-smoothing IsoSpeed and clearance for up to 38mm tires absorbs fatiguing bumps in the road for a smoother, more comfortable ride
- A convenient internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures
- Included power meter crankset allows you to easily monitor performance metrics
| Frame size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Seat tube (CM) | 42 | 45 | 47.5 | 50 | 52.5 | 54.8 | 56.7 | 58.6 |
| Seat tube angle (degrees) | 74.6 | 74.6 | 74.2 | 73.7 | 73.3 | 73 | 72.8 | 72.5 |
| Head tube length (CM) | 11 | 13 | 14.5 | 16 | 17.5 | 19.5 | 22 | 24.5 |
| Head angle (degrees) | 71 | 71.1 | 71.3 | 71.3 | 71.9 | 72 | 72.1 | 72.1 |
| Effective top tube (CM) | 50.9 | 51.9 | 53 | 54.2 | 55.4 | 56.7 | 57.9 | 59.3 |
| Bottom bracket drop (CM) | 8 | 8 | 8 | 8 | 7.8 | 7.8 | 7.5 | 7.5 |
| Chainstay length (CM) | 42 | 42 | 42 | 42 | 42 | 42.5 | 42.5 | 42.5 |
| Offset (CM) | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 48 |
| Trail (CM) | 6.1 | 6 | 5.9 | 5.9 | 6.1 | 6 | 5.9 | 5.9 |
| Wheelbase (CM) | 98.6 | 99.6 | 100.3 | 101 | 100.8 | 102.2 | 103.2 | 104.2 |
| Standover (CM) | 68.6 | 71.6 | 73.5 | 75.4 | 77.6 | 79.6 | 81.7 | 83.5 |
| Frame reach (CM) | 36.4 | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.3 | 38.6 |
| Frame stack (CM) | 52.7 | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 | 63.2 | 65.6 |
| Saddle rail height min (w/short mast) (CM) | 55.5 | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) (CM) | 62 | 65 | 68 | 70.5 | 73.5 | 75.5 | 77.5 | 79.5 |
| Saddle rail height min (w/tall mast) (CM) | 58.5 | 61.5 | 64.5 | 67 | 70 | 72 | 74 | 76 |
| Saddle rail height max (w/tall mast) (CM) | 65 | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
| Size | 47 | 50 | 52 | 54 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|---|
| Rider Height (cm) | 152 - 158 cm | 158 - 163 cm | 163 - 168 cm | 168 - 174 cm | 174 - 180 cm | 180 - 185 cm | 185 - 190 cm | 190 - 195 cm |
| Rider Height (in) | 5'0" - 5'2" | 5'2" - 5'4" | 5'4" - 5'6" | 5'6" - 5'9" | 5'9" - 5'11" | 5'11" - 6'1" | 6'1" - 6'3" | 6'3" - 6'5" |
| Inseam (cm) | 71 - 75 cm | 74 - 77 cm | 76 - 79 cm | 78 - 82 cm | 81 - 85 cm | 84 - 87 cm | 86 - 90 cm | 89 - 92 cm |
| Inseam (in) | 28" - 30" | 29" - 30" | 30" - 31" | 31" - 32" | 32" - 33" | 33" - 34" | 34" - 35" | 35" - 36" |
Specs
| Frame | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Wheels | F: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle R: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
| Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Crankset | SRAM RED AXS, power meter, 46/33 |
| Shifters | SRAM RED eTap AXS, 12 speed |
| Front Derailleur | SRAM RED eTap AXS, braze-on |
| Rear Derailleur | SRAM RED eTap AXS, 36T max cog |
| Cassette/Freewheel | SRAM XG-1290, 10-33, 12 speed |
| Chain | SRAM RED D1, 12 speed |
| Rotors | SRAM CenterLine X, centerlock, round edge, 160mm |
| Handlebars | Bontrager Pro IsoCore VR-SF |
| Stem | Trek RCS Pro, -7 degree |
| Seatpost | KVF aero carbon seatpost, 20mm offset |
| Saddle | Verse Short Pro, carbon rails |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Axinite Flip/Trek Black / 47cm / 700c | 197216133957 | 5331108 |
| Axinite Flip/Trek Black / 50cm / 700c | 197216133964 | 5331109 |
| Axinite Flip/Trek Black / 52cm / 700c | 197216133971 | 5331110 |
| Axinite Flip/Trek Black / 54cm / 700c | 197216133988 | 5331111 |
| Axinite Flip/Trek Black / 56cm / 700c | 197216133995 | 5331112 |
| Axinite Flip/Trek Black / 58cm / 700c | 197216134008 | 5331113 |
| Axinite Flip/Trek Black / 60cm / 700c | 197216134015 | 5331114 |
| Axinite Flip/Trek Black / 62cm / 700c | 197216134022 | 5331115 |
| Metallic Red Smoke/Red Carbon Smoke / 47cm / 700c | 197216133872 | 5331100 |
| Metallic Red Smoke/Red Carbon Smoke / 50cm / 700c | 197216133889 | 5331101 |
| Metallic Red Smoke/Red Carbon Smoke / 52cm / 700c | 197216133896 | 5331102 |
| Metallic Red Smoke/Red Carbon Smoke / 54cm / 700c | 197216133902 | 5331103 |
| Metallic Red Smoke/Red Carbon Smoke / 56cm / 700c | 197216133919 | 5331104 |
| Metallic Red Smoke/Red Carbon Smoke / 58cm / 700c | 197216133926 | 5331105 |
| Metallic Red Smoke/Red Carbon Smoke / 60cm / 700c | 197216133933 | 5331106 |
| Metallic Red Smoke/Red Carbon Smoke / 62cm / 700c | 197216133940 | 5331107 |
| Prismatic Pearl / 47cm / 700c | 197216133797 | 5331092 |
| Prismatic Pearl / 50cm / 700c | 197216133803 | 5331093 |
| Prismatic Pearl / 52cm / 700c | 197216133810 | 5331094 |
| Prismatic Pearl / 54cm / 700c | 197216133827 | 5331095 |
| Prismatic Pearl / 56cm / 700c | 197216133834 | 5331096 |
| Prismatic Pearl / 58cm / 700c | 197216133841 | 5331097 |
| Prismatic Pearl / 60cm / 700c | 197216133858 | 5331098 |
| Prismatic Pearl / 62cm / 700c | 197216133865 | 5331099 |
| Trek Black / 47cm / 700c | 197216134039 | 5331116 |
| Trek Black / 50cm / 700c | 197216134046 | 5331117 |
| Trek Black / 52cm / 700c | 197216134053 | 5331118 |
| Trek Black / 54cm / 700c | 197216134060 | 5331119 |
| Trek Black / 56cm / 700c | 197216134077 | 5331120 |
| Trek Black / 58cm / 700c | 197216134084 | 5331121 |
| Trek Black / 60cm / 700c | 197216134091 | 5331122 |
| Trek Black / 62cm / 700c | 197216134107 | 5331123 |
