Trek Domane+ SLR 7
Details

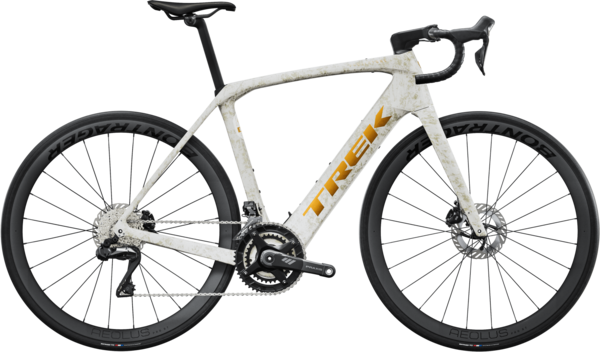

Domane+ SLR 7 is a category-redefining carbon e-road bike built with intensely light 800 Series OCLV Carbon. It hides a compact and refined motor to elevate your ride with natural-feeling assist that quietly blends in with the elements, all but disappearing under you, so you stay more connected to the experience while enjoying extra power for crushing climbs and long, epic adventures. Plus, it offers the ultra-fast shifting of a Shimano Ultegra Di2 drivetrain.
You’re looking for a high-end carbon e-road bike that's super light, super discreet, and super quiet. Versatility is important, and you want the ability to roll on everything from smooth pavement to rough gravel. You also want the performance upgrade of a quick and precise Ultegra Di2 wireless electronic drivetrain.
A supremely light 800 Series OCLV Carbon frame with rear IsoSpeed. A powerful 50Nm TQ harmonic pin ring motor that assists up to 28mph, a 360Wh integrated battery, an integrated smart LED display, and discreet hood-mounted controls for toggling through assist modes. Aeolus Pro 37 OCLV Carbon wheels, Shimano Ultegra 2x12 Di2 wireless electronic drivetrain, carbon cranks, a vibration-absorbing Bontrager Pro Iso-Core handlebar, and a RCS Pro stem that fully integrates your cables for a sleek look.
A lightweight Domane+ carbon frame and discreet electric drive system give you the added boost you want without sacrificing sleek looks and impressive performance. Wireless electronic Shimano Ultegra Di2 delivers ultra-fast and precise shifts.
| Frame Size | 50 | 52 | 54 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|
| A — Seat tube | 45 | 47.5 | 50 | 52.5 | 54.8 | 56.7 | 58.6 |
| B — Seat tube angle | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| C — Head tube length | 13 | 14.5 | 16 | 17.5 | 19.5 | 22 | 24.5 |
| D — Head angle | 71.1° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° | 72.1° |
| E — Effective top tube | 51.9 | 53 | 54.2 | 55.4 | 56.7 | 57.9 | 59.3 |
| G — Bottom bracket drop | 8 | 8 | 8 | 7.8 | 7.8 | 7.5 | 7.5 |
| H — Chainstay length | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| I — Offset | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 4.8 |
| J — Trail | 6.3 | 6.2 | 6.2 | 6.3 | 6.3 | 6.2 | 6.2 |
| K — Wheelbase | 100.7 | 101.3 | 102.1 | 101.8 | 102.7 | 103.7 | 104.7 |
| L — Standover | 72.8 | 74.7 | 76.6 | 78.8 | 80.8 | 82.9 | 84.7 |
| M — Frame reach | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.3 | 38.6 |
| N — Frame stack | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 | 63.2 | 65.6 |
| Stem length | 80 | 90 | 90 | 100 | 100 | 110 | 110 |
| Saddle rail height min (w/short mast) | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) | 65 | 68 | 70.5 | 73.5 | 75.5 | 77.5 | 79.5 |
| Size | Rider Height | Inseam | |
|---|---|---|---|
| 50 | 158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
|
| 52 | 163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
|
| 54 | 168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
|
| 56 | 174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
|
| 58 | 180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
|
| 60 | 185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
|
| 62 | 190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
Specs
| Frame | 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle |
|---|---|
| Fork | Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Wheels | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle |
| Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
| Crankset | Praxis Carbon, 170mm length |
| Chainrings | Praxis, 50/34T, 12 speed |
| Shifters | Shimano Ultegra R8170 Di2, 12 speed |
| Front Derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear Derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| Cassette/Freewheel | Shimano Ultegra R8101, 11-34, 12 speed |
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Brakes | Shimano Ultegra hydraulic disc, BR-R8170 flat mount caliper, resin pad w/fin |
| Handlebars | Bontrager Pro IsoCore VR-SF, 40cm |
| Stem | Trek RCS Pro, -7 degree, 80mm length |
| Seatpost | KVF aero carbon seatpost, 20mm offset, 280mm length |
| Saddle | Verse Short Elite, hollow magnesium rails, 155mm width |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Era White / 50cm / 700c | 197216056720 | 5322958 |
| Era White / 52cm / 700c | 197216056737 | 5322959 |
| Era White / 54cm / 700c | 197216056744 | 5322960 |
| Era White / 56cm / 700c | 197216056751 | 5322961 |
| Era White / 58cm / 700c | 197216056768 | 5322962 |
| Era White / 60cm / 700c | 197216056775 | 5322963 |
| Era White / 62cm / 700c | 197216056782 | 5322964 |
| Prismatic Pearl / 50cm / 700c | 197216088721 | 5322951 |
| Prismatic Pearl / 52cm / 700c | 197216088738 | 5322952 |
| Prismatic Pearl / 54cm / 700c | 197216088745 | 5322953 |
| Prismatic Pearl / 56cm / 700c | 197216088752 | 5322954 |
| Prismatic Pearl / 58cm / 700c | 197216088769 | 5322955 |
| Prismatic Pearl / 60cm / 700c | 197216088776 | 5322956 |
| Prismatic Pearl / 62cm / 700c | 197216088783 | 5322957 |
